Technology E-hybrid

Our electric - hybrid propulsion takes advantage of electric motor and combustion engine to offer the best of both worlds.

Discover

  • Range 1 h 20 at 5 knots

    No range anxiety ! Hybrid mode charge on-the-go if needed

  • Silence and maneuverability

    When driving becomes child's play

  • Safety

    No propellers in the water means safety for human and material !

ELECTRIC MODE

Our nature-friendly 100% electric mode invites you to discover and enjoy new horizons, helps you to watch wildlife or find hidden areas since you can navigate through shallow waters.

  • 25 knots

    Maximum speed

  • 1h 30 min

    To recover 100% of battery range

  • 350 hp + 30 hp

    350 hp  "combustion engine inboard"
    +30 hp   "electric boost when taking off"

HYBRID MODE

Performance mode for high speed operation. Power is mainly supplied by a single inboard engine which is more fuel efficient on long distances.

How does it work ?

Electric propulsion diagram
  • Zdrive base
  • Starboard propeller
  • Electric motor, starboard propulsion
  • Lithium batteries
  • Zdrive base
  • Starboard propeller
  • Electric motor, starboard propulsion
  • Lithium batteries

Electric propulsion motors turn propellers in nozzles to move the boat. Motors are powered by a 20 kWh lithium battery.
When operating in electric mode, combustion engine is OFF and  stern drive base is up.

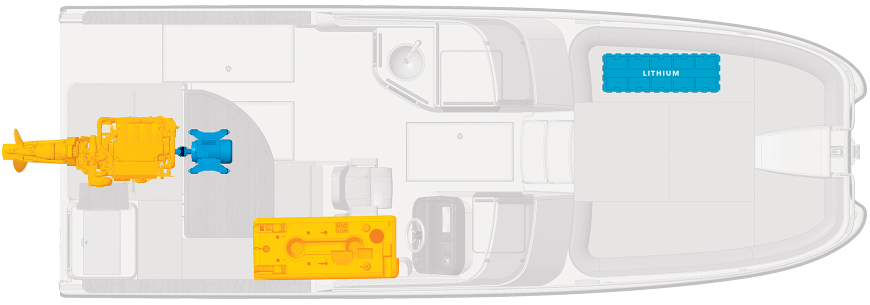

Hybrid propulsion diagram
  • Inboard engine, main propulsion
  • Zdrive base
  • REGEN electric motor
  • Fuel tank
  • Lithium batteries
  • Inboard engine, main propulsion
  • Zdrive base
  • REGEN electric motor
  • Fuel tank
  • Lithium batteries

As a conventional boat, Pinball is propelled by a 350 hp sterndrive engine.
On-the-go, electric REGEN motor operates as a generator and recharges battery completely within 1,5 hour.
During taking off to provide maximum power for a short period, electric Regen motor and engine  work simultaneously (Boost feature).

Technical information

Characteristics
Overall length 9m
Hull length 8m35
Hull beam 2,97m
Air draught 3m
Draught 0,50 m
Light deplacement 3,8 t
Capacity Up to 15 people
EC certification C15
Fresh Water capacity 105 l
Fuel capacity 420 l
Igloo cabin 1
Berth 2
Performances
Max speed Hybrid 25 kts
Max speed Electric 5 kts (range 1h 20)
Sterndrive inboard gas engine V8 350 DPS VOLVO 350 hp (257 kW) or optional 430 hp(316 kW)
Electric Propulsion 2 x 8 kW (S2-1h)
Main Battery Lithium Battery 20 kWh - 48 V
Time full charge on main supply 5h (230V, 16A plug)
Time full charge in Hybrid (REGEN feature) 1h30
Electric steering Electric steering wheel & hydraulic steering closed loop control
Throttle Lever Digital
